Intro

For Rush's 1994 Counterparts album and tour, Neil Peart used a brand-new Ludwig Super Classic drum kit with a "Black Cherry" finish. This was Peart's third and final Ludwig kit, as he switched to Drum Workshop for the Test for Echo album and tour, and these drums went into storage.

The public wouldn't see the Counterparts kit again until around 1999, when it went on display at the Rock and Roll Hall of Fame in Cleveland, Ohio. Actually, if it hadn't been for the Rock Hall's request, the Counterparts kit might have been lost to the attics and basements of history. It turned out that during Rush's hiatus (1998-2001), former drum tech Larry Allen had given away the drums and hardware to friends and family. It fell on the shoulders of future drum tech Lorne "Gump" Wheaton to get the pieces back.1

After the Rock Hall, the drums moved to their permanent home at the Canadian Musuem of History in Quebec—where every piece of the drum kit was meticiously cataloged and photographed. These photos provide a rare opportunity to inspect the drums, electronics, and hardware as they were in 2001.

As of 2017, the Counterparts drums are not yet on display at the museum.

1 As told by Lorne Wheaton during the S.S. Professor tour in Los Angeles in 2005.

Canadian Museum of History catalog photos

Notes

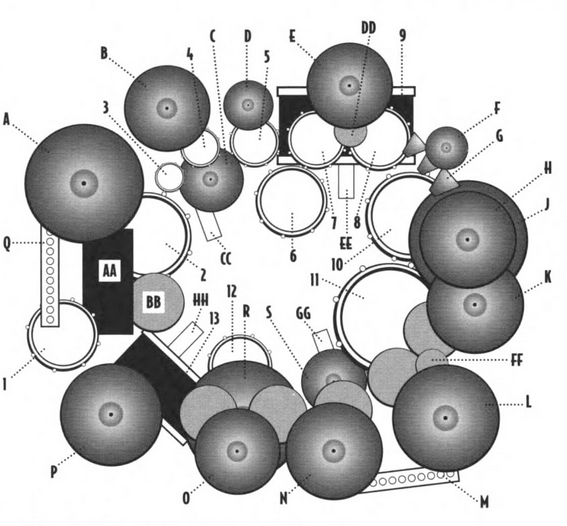

  • The drum infographic below comes from the excellent book, Star Sets: Drum Kits of the Great Drummers (the original source was a 1994 Modern Drummer cover story on Neil Peart). Below we've matched the key from the Star Sets infographic to the Canadian History Museum catalog photos. We've also included the Canadian History catalog ID without the 2001 prefix.

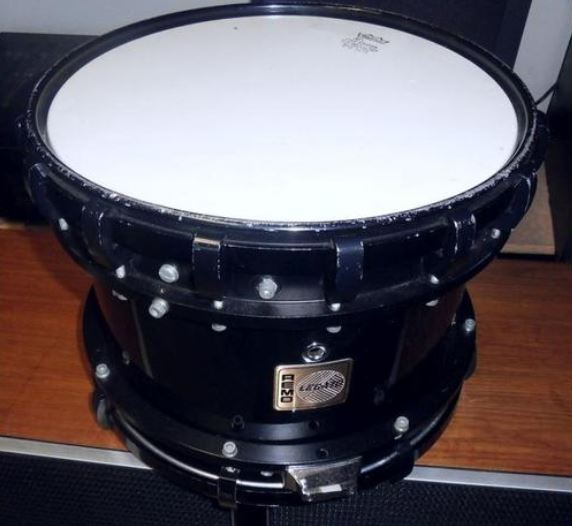

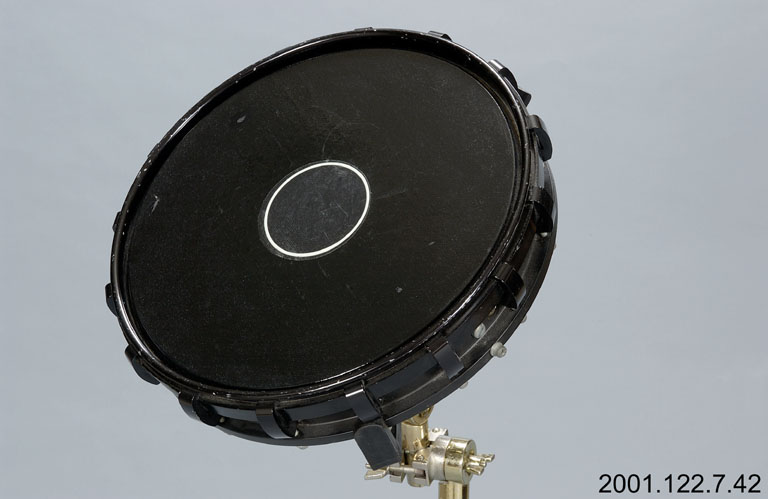

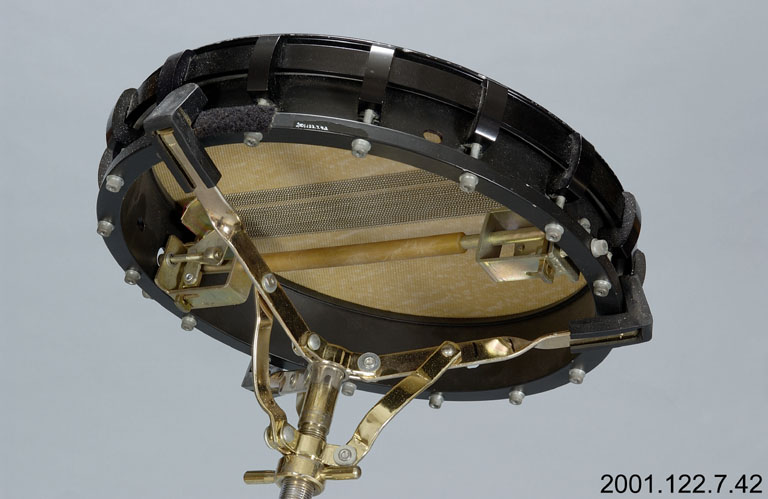

  • The Remo Legato (Infographic Key 1, Photo ID 122.7.42) that Peart used as his auxilliary snare has an interesting history. Originally designed and manufactured by the Legato Drum Company in Australia as the K-Series pipe band snare, it was one of the first snare that could withstand the high-tension Kevlar heads that were causing both tension rods and shells to break. Legato later partnered with the Remo Corporation to manufacture the K-Series and eventually the Legato. Comparing Peart's version with the full Legato snare, you'll see that he only used the top part of the drum (pipe drums typically have two snares—one under both the batter [top] and resonant [bottom] heads). The crisp, staccato attack of the Legato can be heard on Counterparts songs "Stick it Out," "Cold Fire," and "Speed of Love." Peart was originally introduced to this snare by Grateful Dead drummer Mickey Hart.

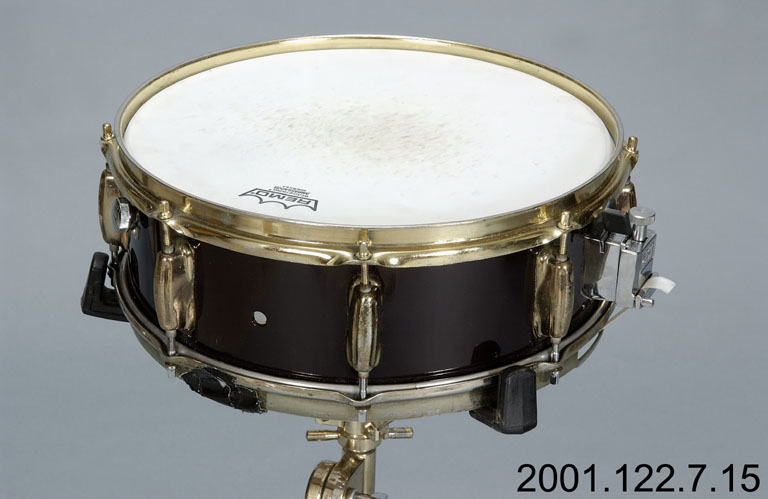

  • It's not clear if the Slingerland Artist Model snare drum (Infographic Key 6, Photo ID 122.7.15) is Peart's original "Number One" snare that he purchased in a pawn shop for $60, which he last used with this kit, or if it's the twin he used with the electronic kit before the Counterparts tour.

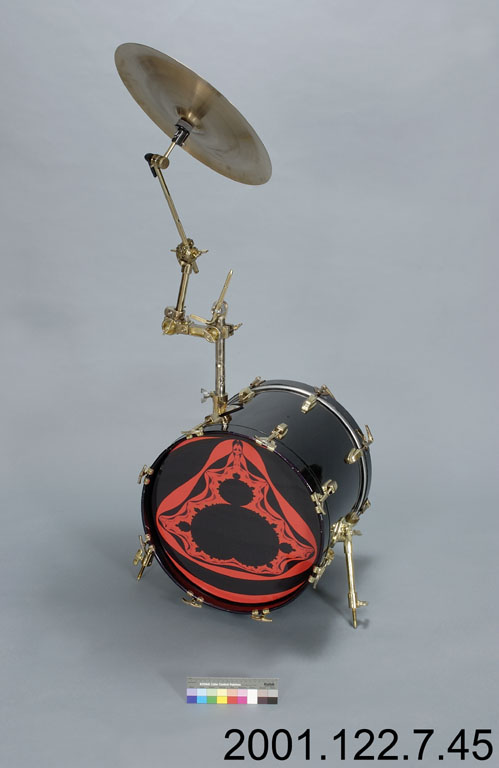

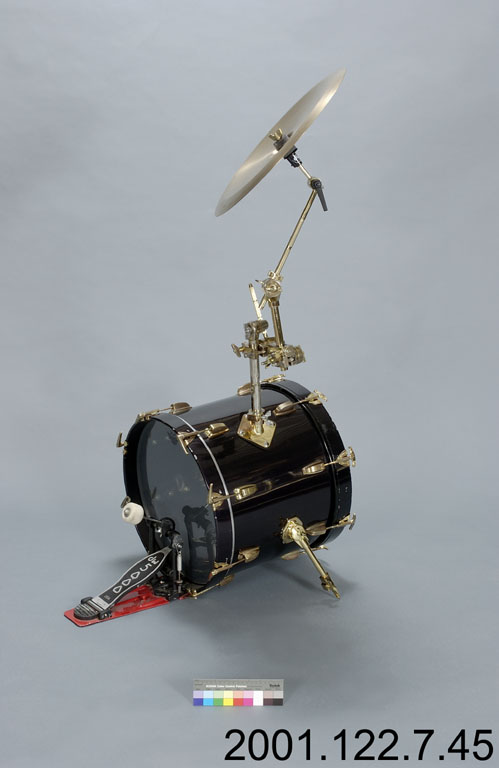

  • The "Mandelbrot Set" fractal design on the front head on the 18" bass drum (Infographic Key 13, Photo ID 122.7.45) was used during the Test for Echo Tour and not during Counterparts.

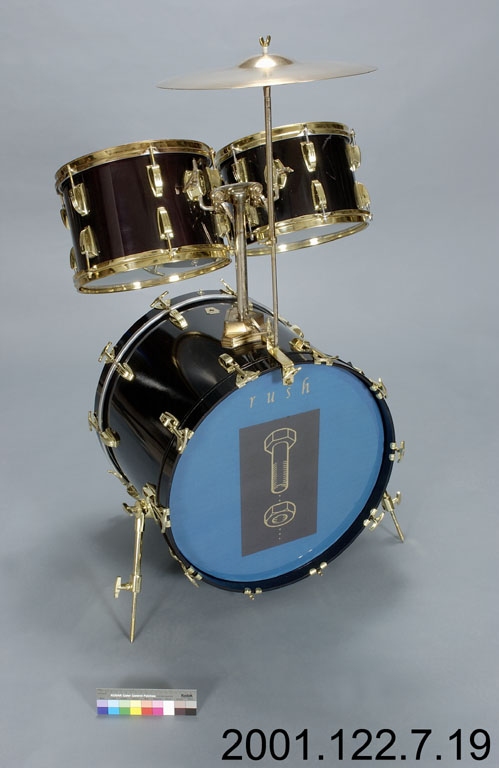

  • The DW 5000 bass drum pedals pictured with the bass drums (Photo ID 122.7.45, 122.7.19) were most likely owned by Peart, but were not used with this particular drum kit (Peart used a Yamaha double-bass pedal and Camco single pedal). Once Peart switched to DW pedals, he used the 9000 series bass drum pedals.

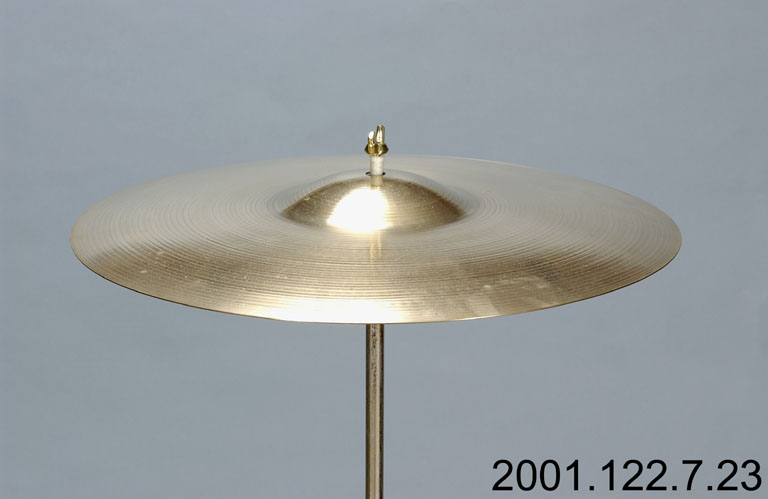

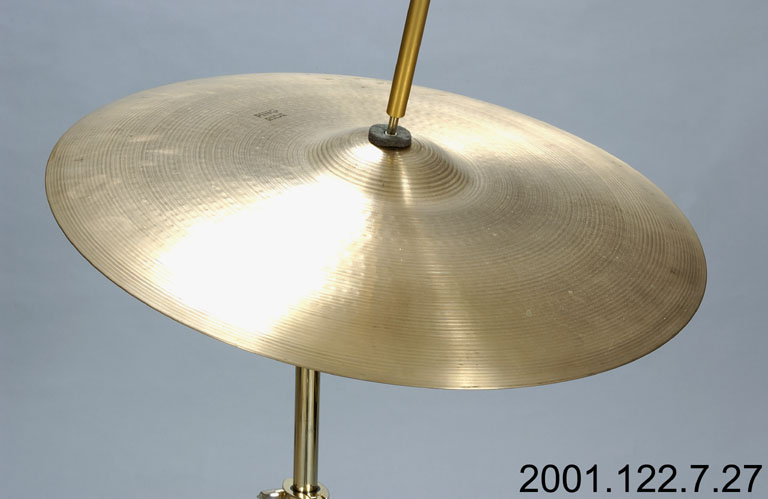

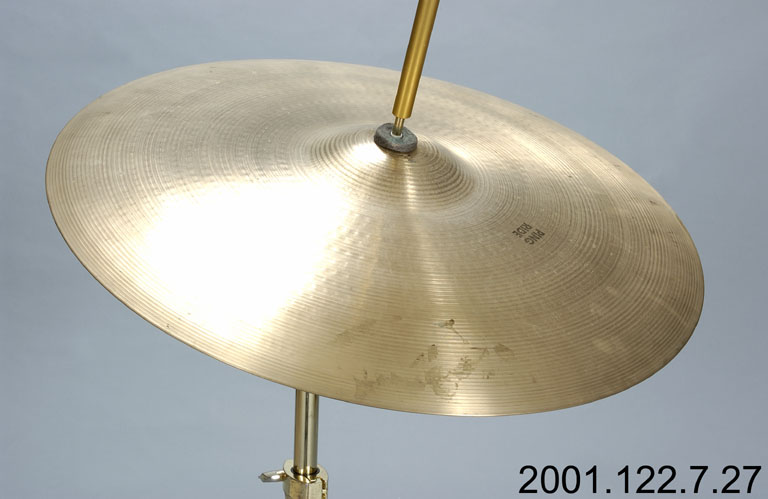

  • The Zildjian cymbals were most likely backups from either the Counterparts or Test for Echo tours. Note that most of the cymbals don't include logos or writing, which is how Peart ordered his cymbals from Zildjian. Peart's original 22-inch Ping Ride, which he used until he began using Sabian cymbals in 2004, doesn't appear to be included in this collection.
  • Several pieces are missing in the musuem's collection, including the Shark pedals (Infographic Key C), SID electronic trigger (DD), Dauz pad (FF), and Yamaha double bass drum pedal (EE).

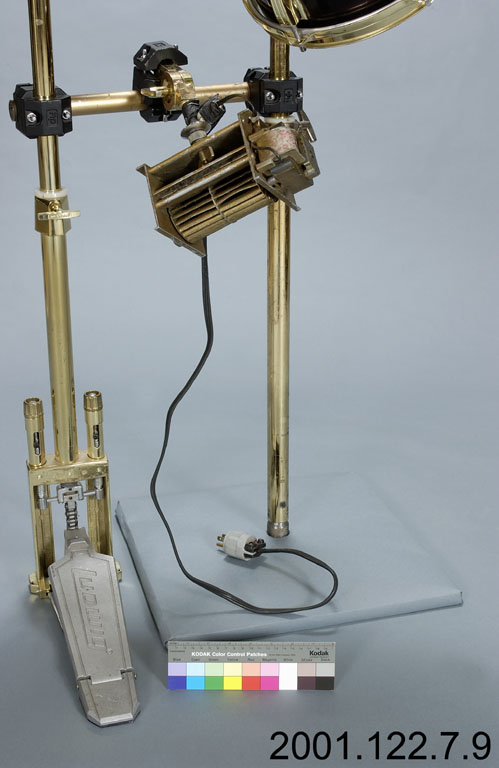

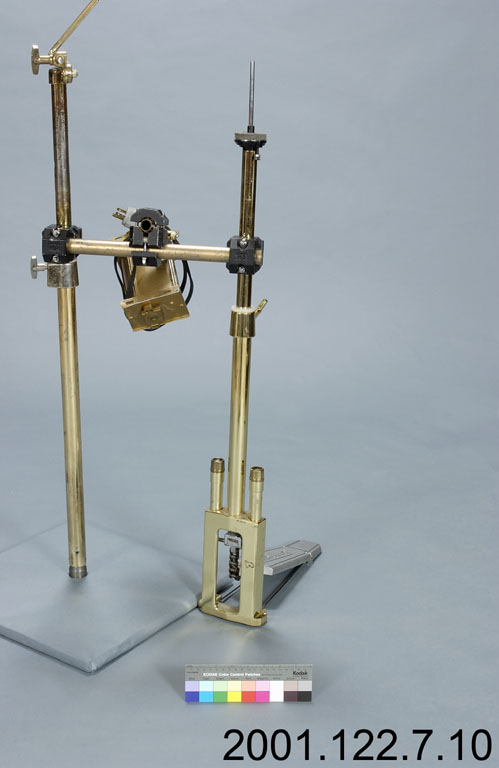

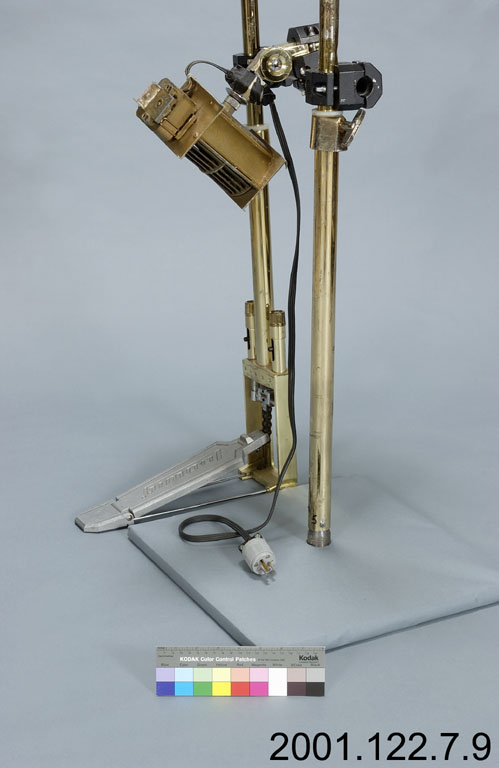

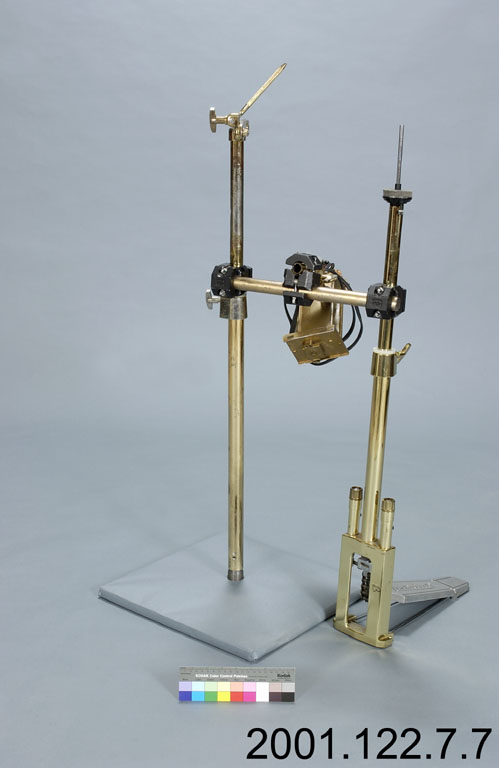

  • The "squirrel cage" fans that Peart uses to keep his hands dry are visible in Stands photos 122.7.7, 122.7.9, and 122.7.10. Peart has said that this is the most-asked about item on his drum kit.

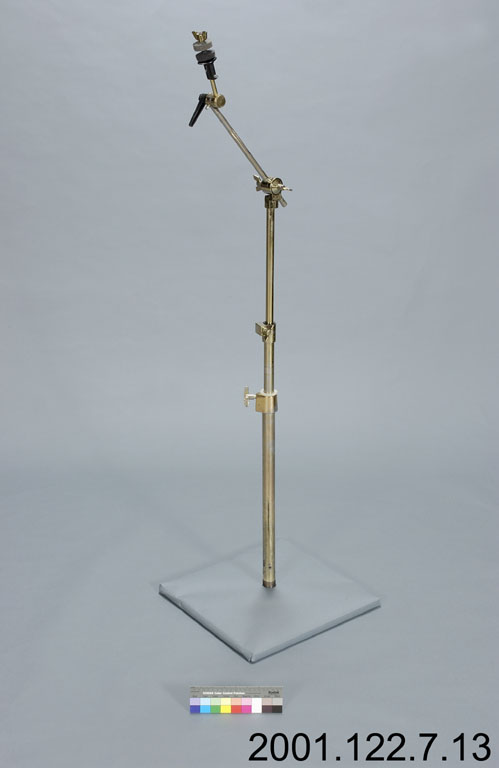

  • Note that cymbal stands don't include rubber feet, as they thread directly into the oak plywood drum boards. The bass drum spurs and floor tom legs also don't contain rubber feet, but these sit on pre-positioned holes on the drum boards.

Infographic


Drums

Infographic Key Drum (measured in inches) Catalog Photo Photo ID - Prefix 2001
1 3 x 14 Remo Legato snare
122.7.42

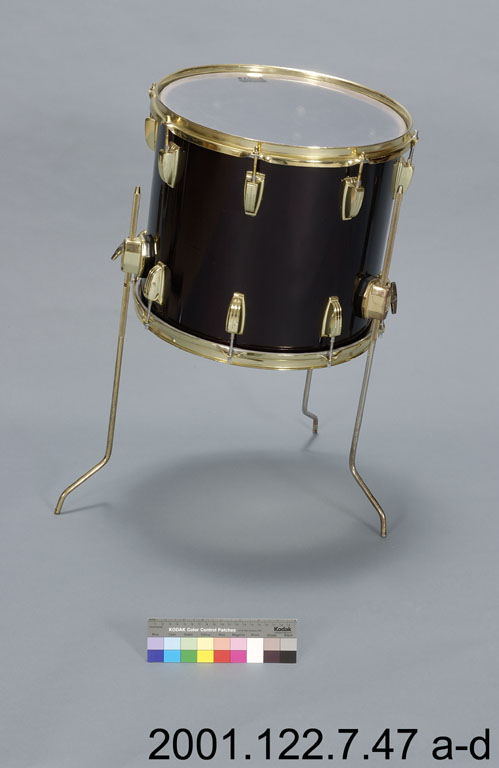

2 13 x 15 floor tom
122.7.47 a-d

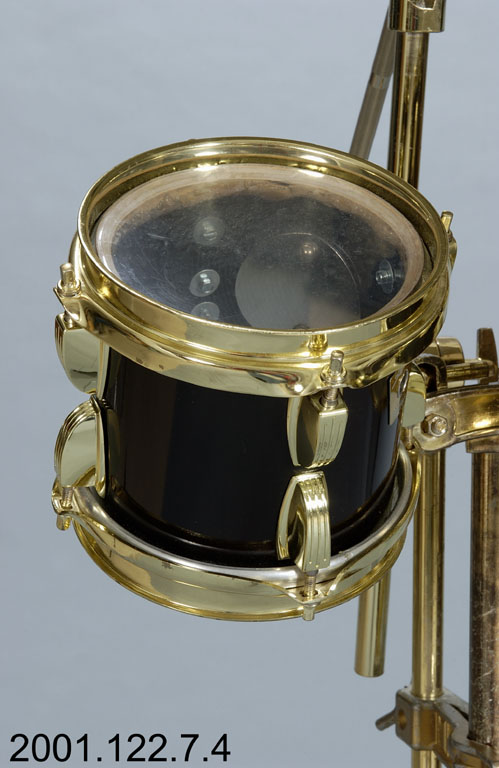

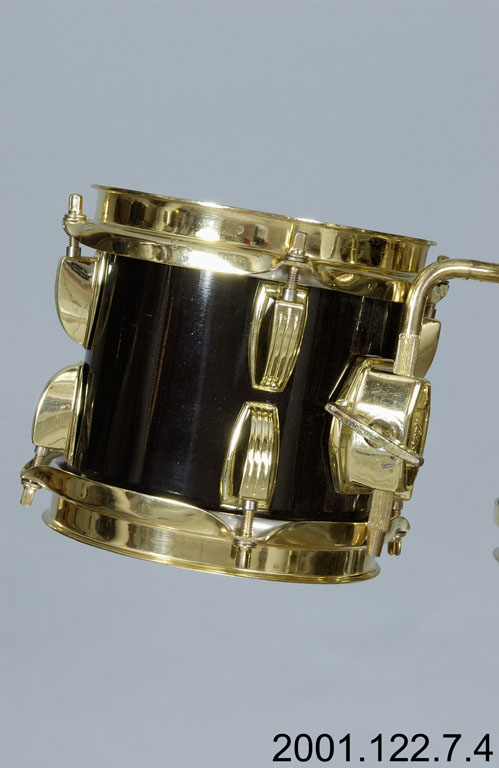

3 5 1/2 x 6 tom

122.7.4

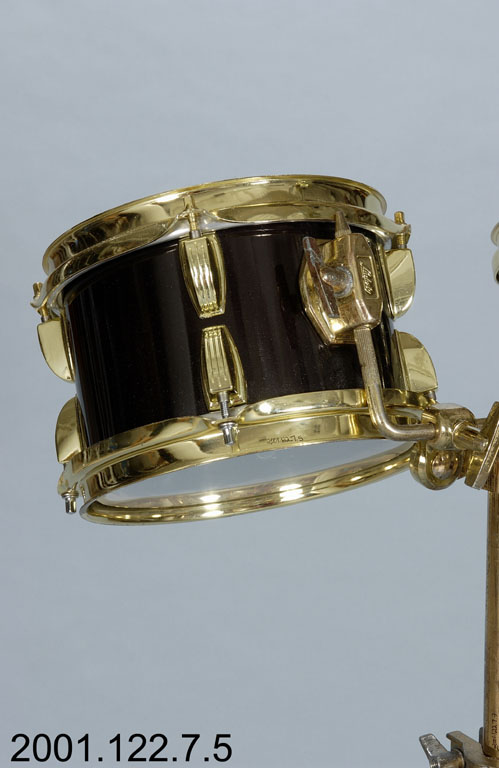

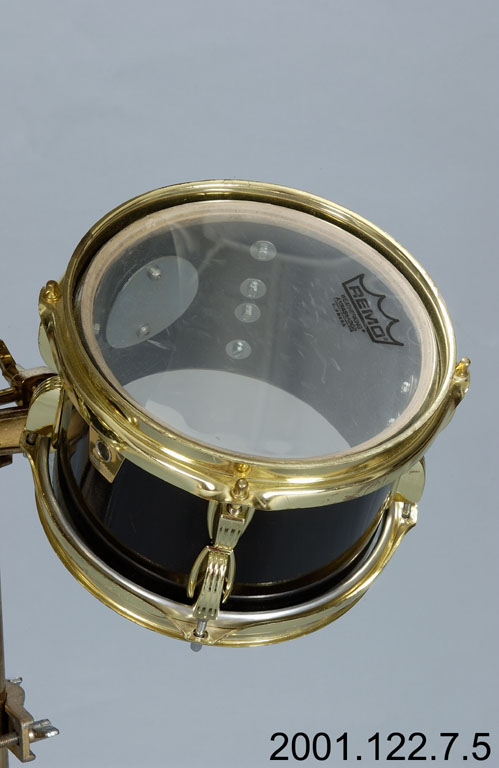

4 5 1/2 x 8 tom
122.7.5

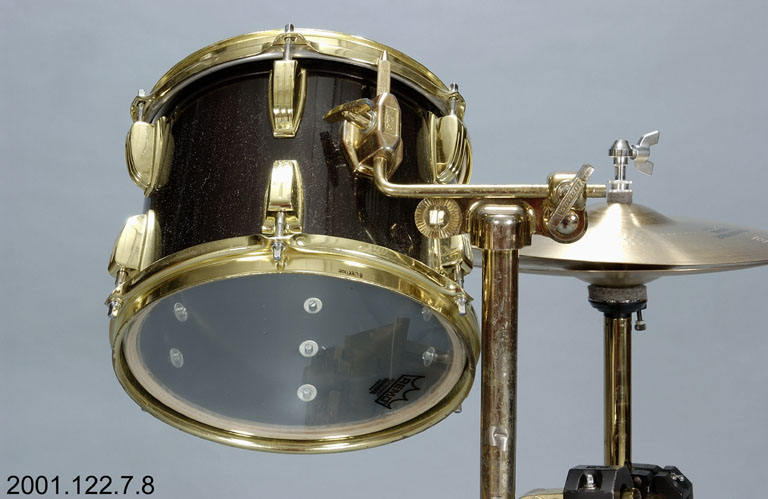

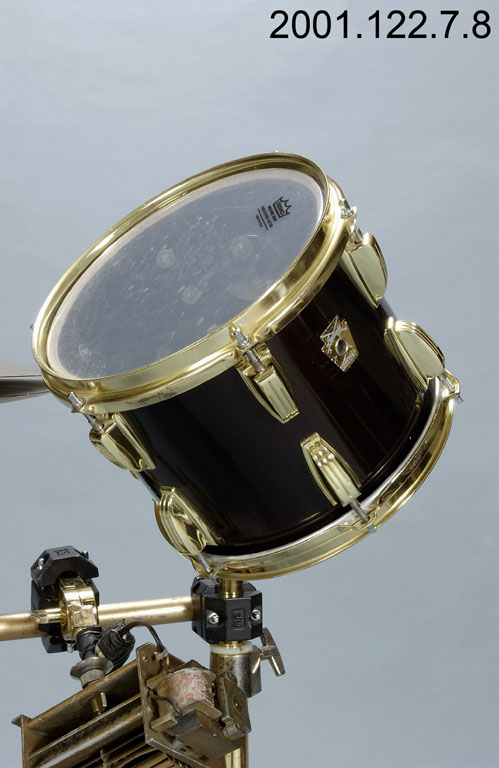

5 8 x 10 tom
122.7.8
Also includes only Tama stand, 122.7.10

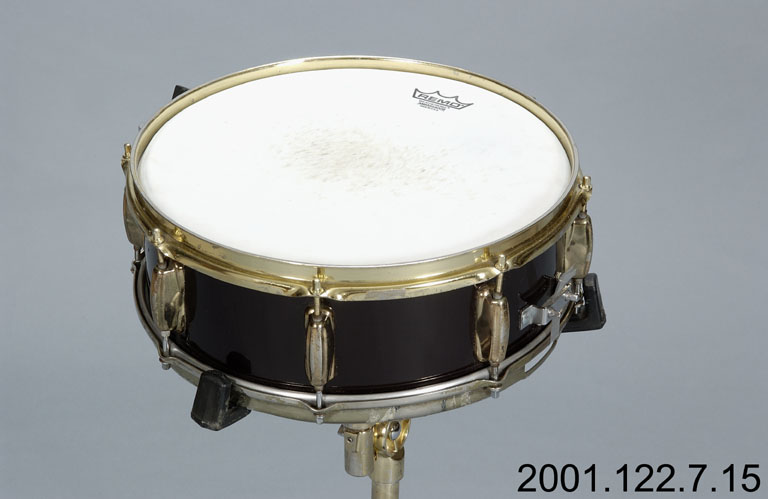

6 5 x 14 Slingerland Artist Model snare drum

122.7.15

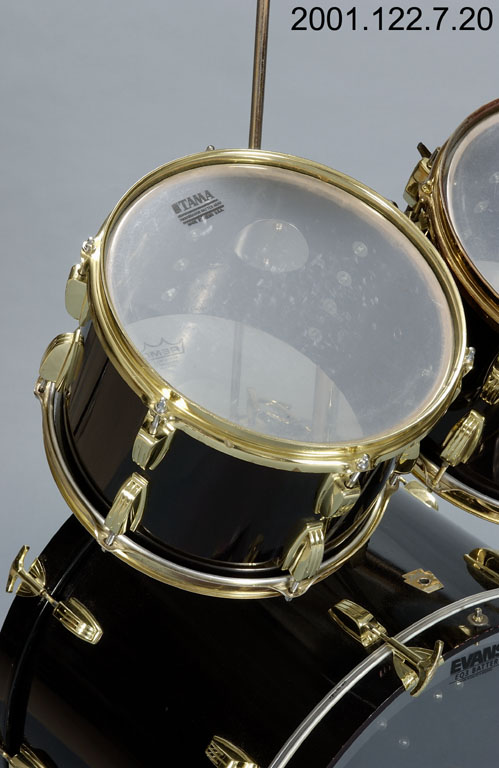

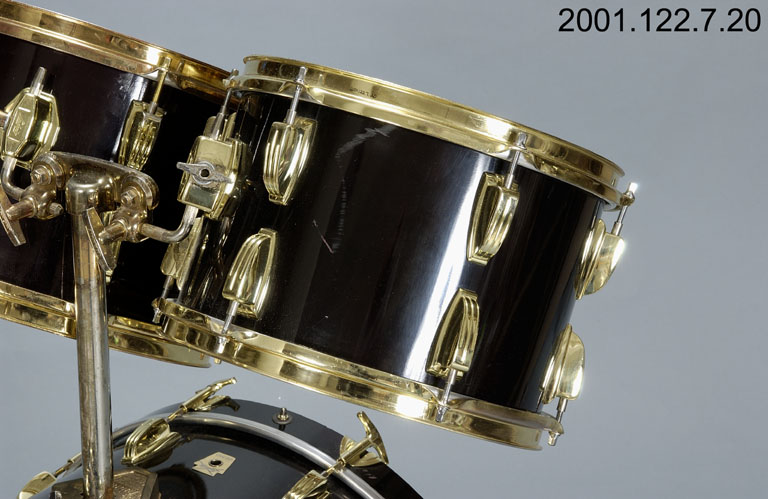

7 8 x 12 tom

122.7.20

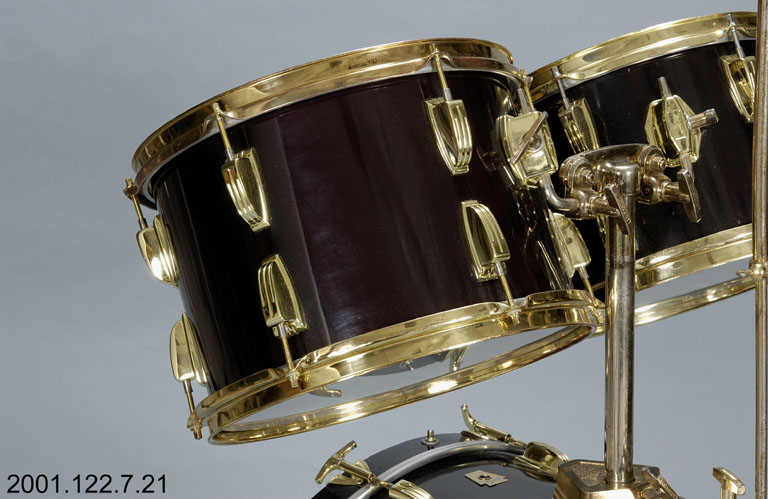

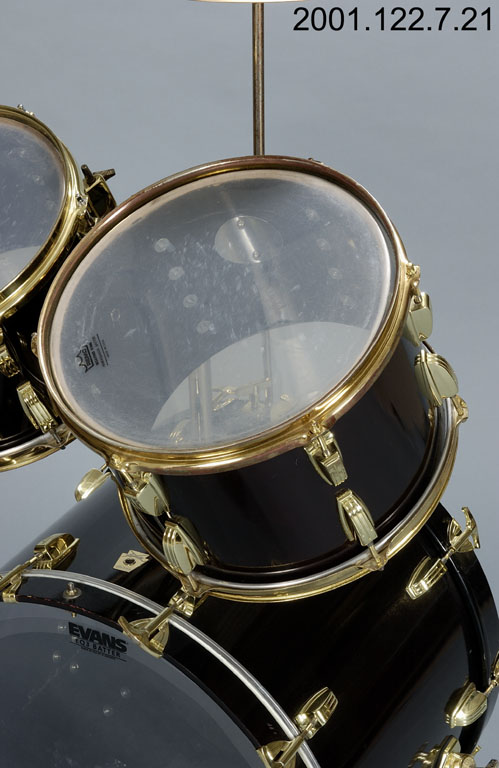

8 9 x 13  tom
122.7.21

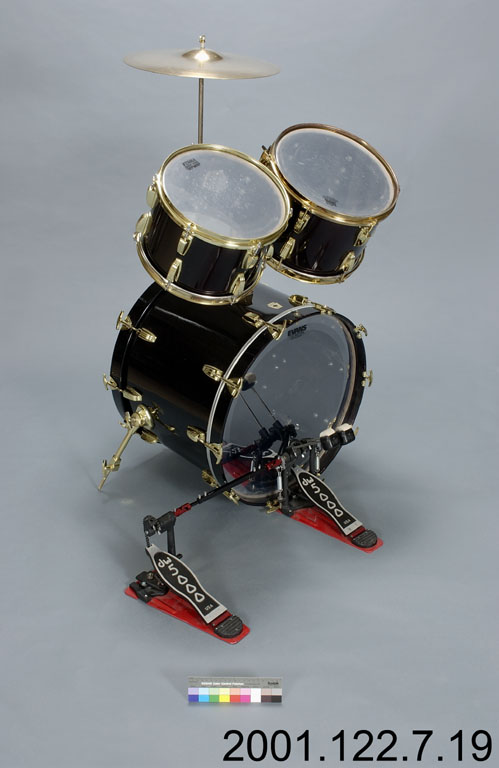

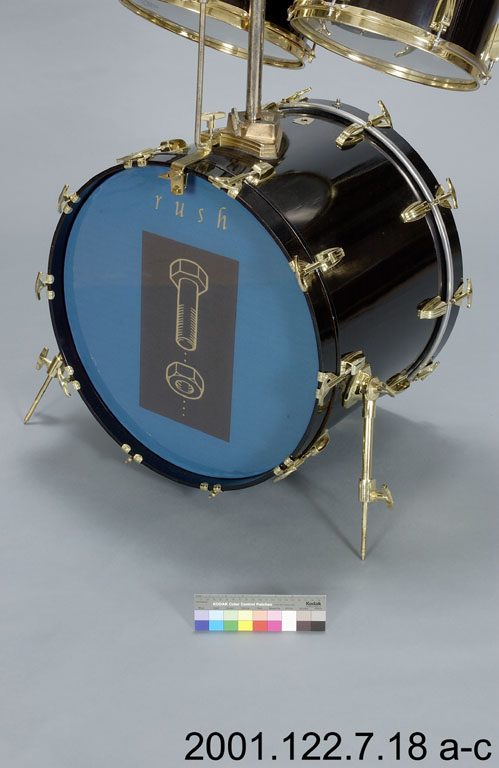

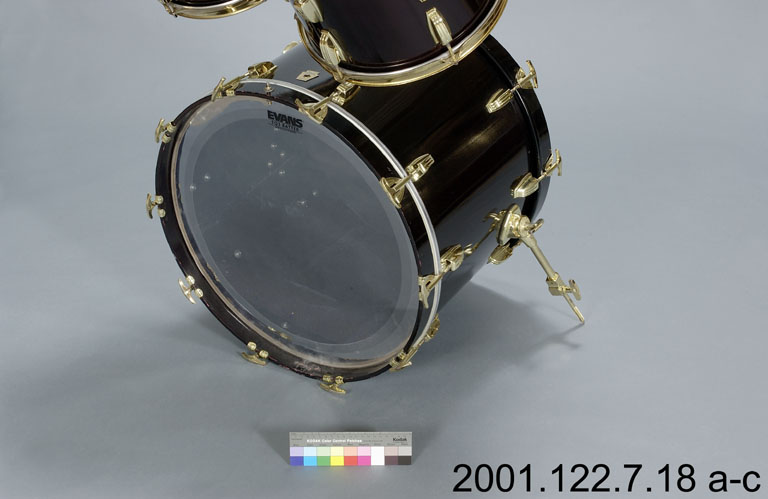

9 16 x 22 bass drum (shown with DW 5000 double pedal instead of Yamaha)

122.7.18 a-c
122.7.19

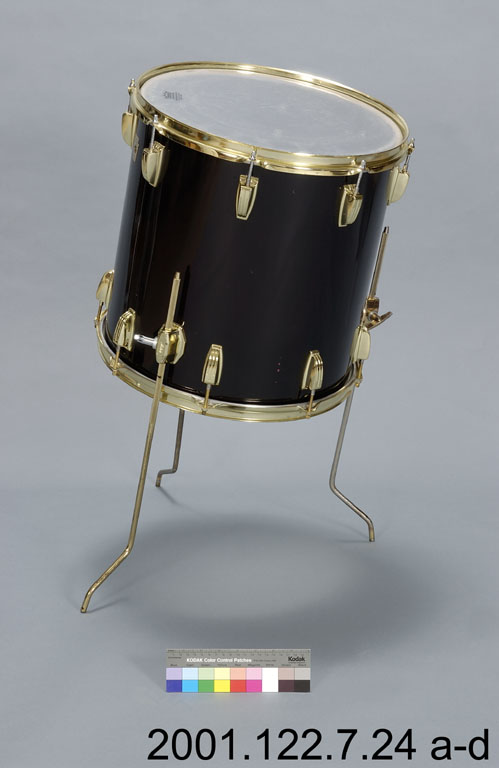

10 16 x 16 floor tom

122.7.24 a-d

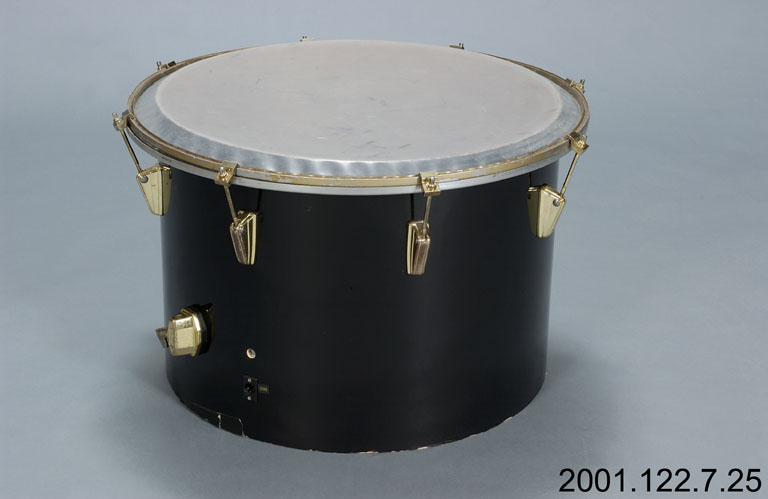

11 22 gong bass drum (with 24 head)

122.7.25

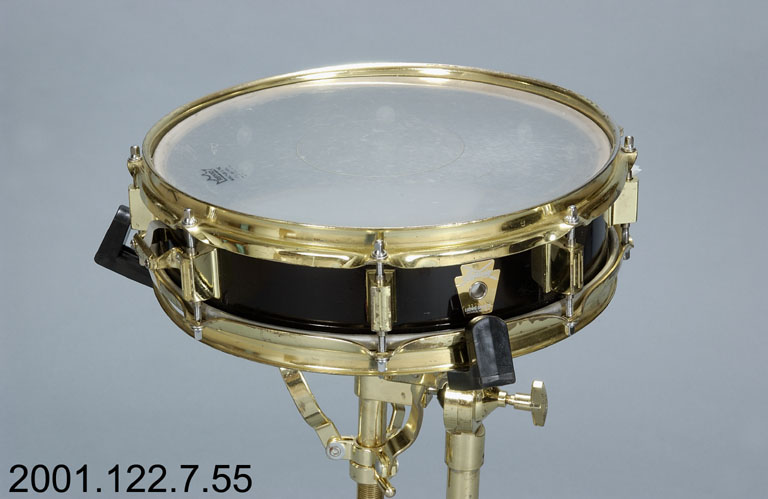

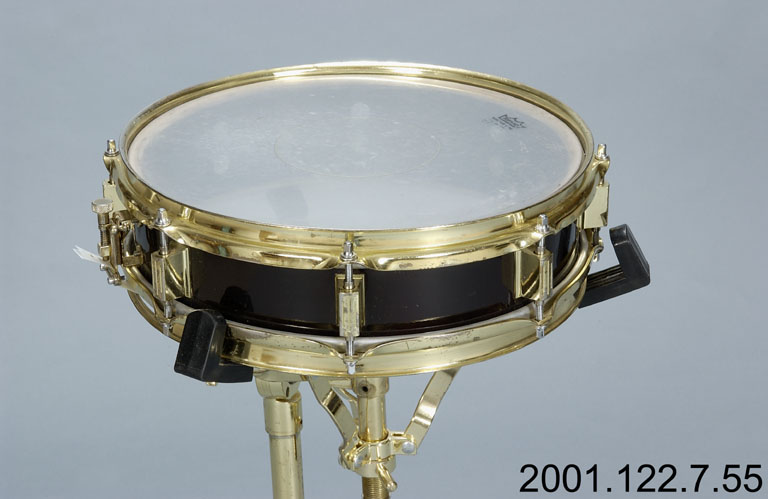

12 3 x 13 Ludwig Ensemble snare drum

122.7.55
13 14 x 18 bass drum (shown with DW 5000 pedal instead of Camco)

122.7.45



Hardware, Pads, Electronics

Infographic key Drum Catalog photo ID - Prefix 2001

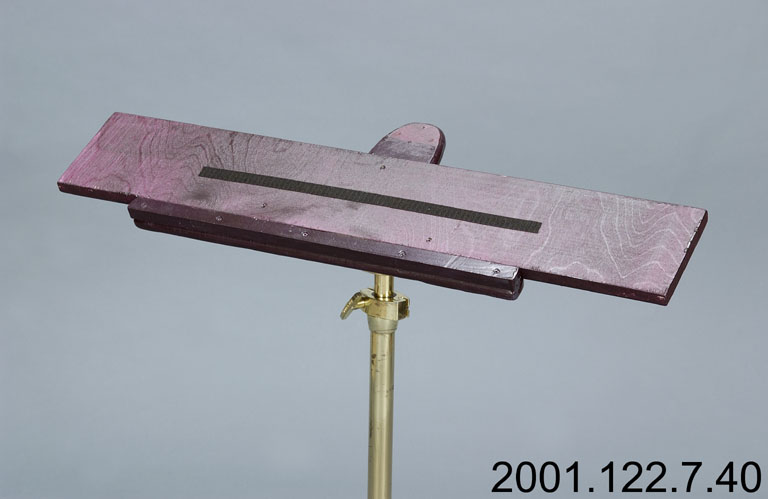

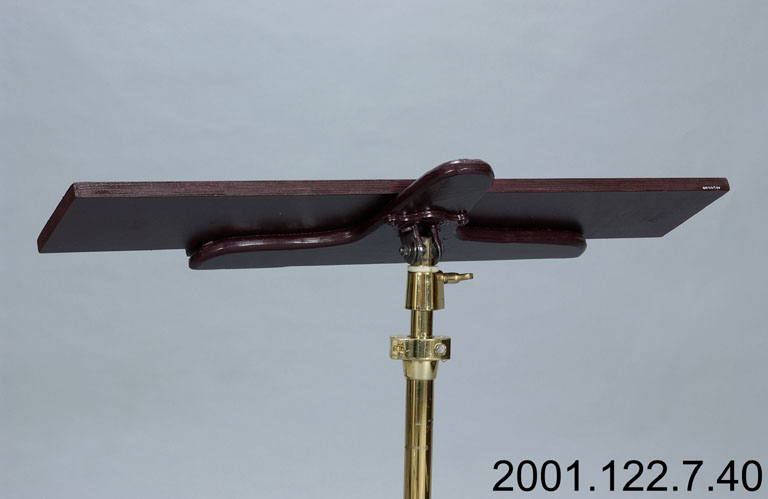

AA Kat malletKat stand
122.7.40

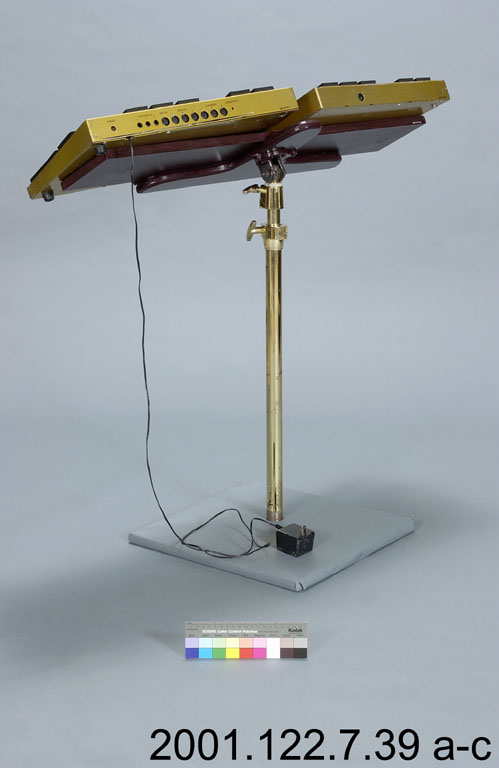

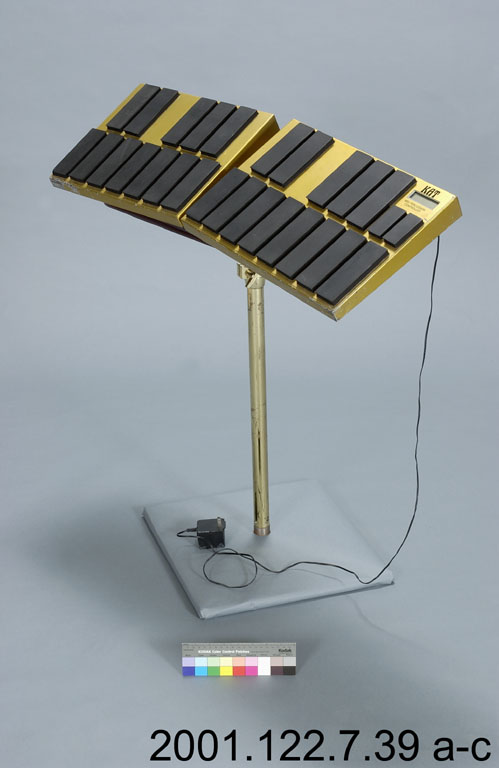

AA Kat malletKat
122.7.39 a-c

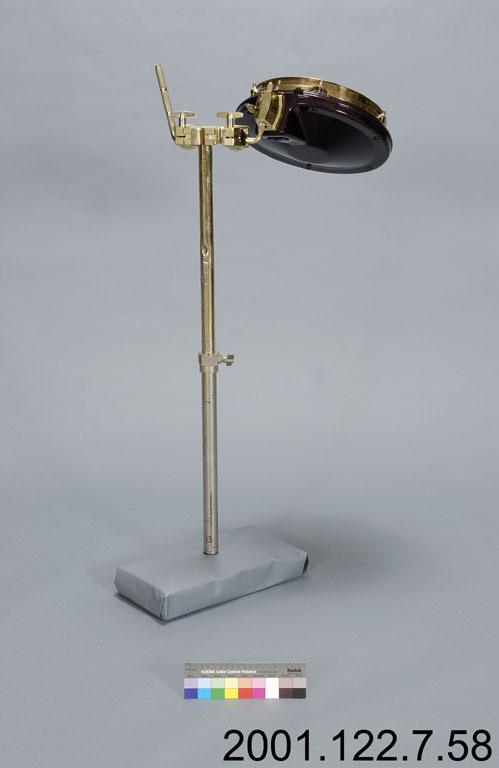

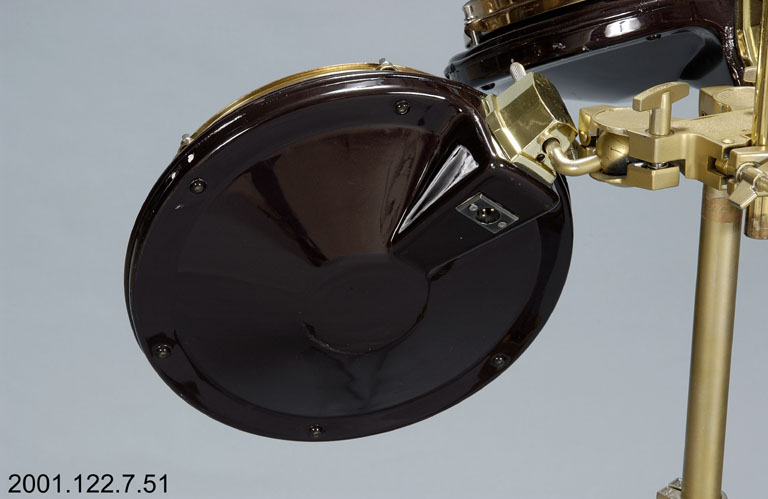

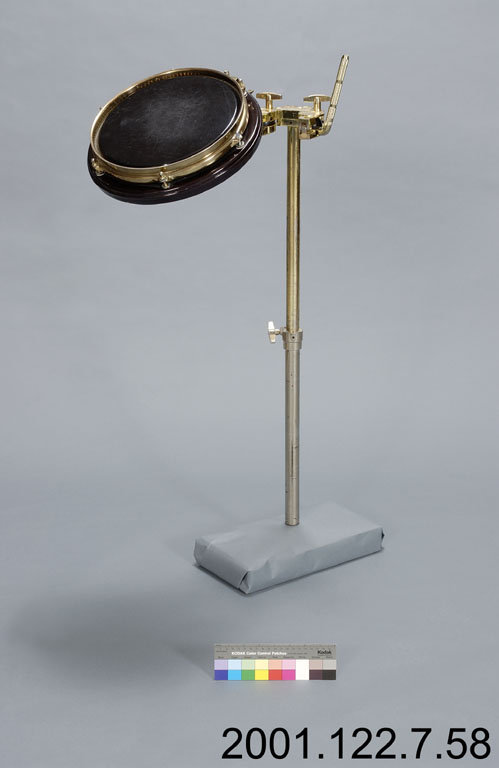

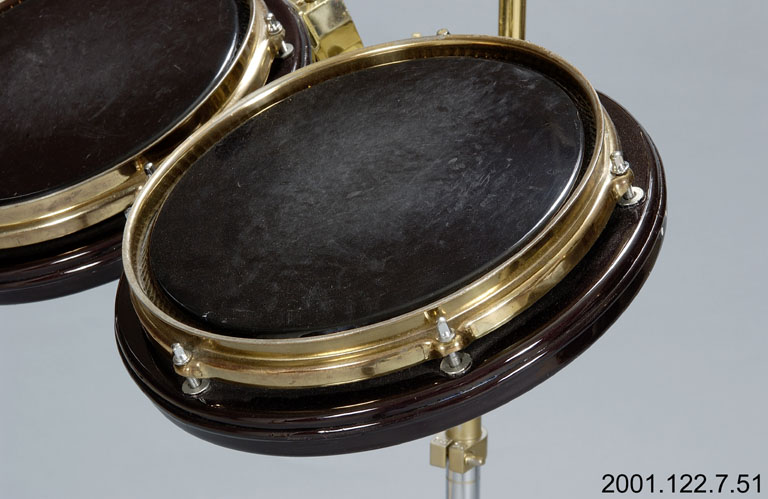

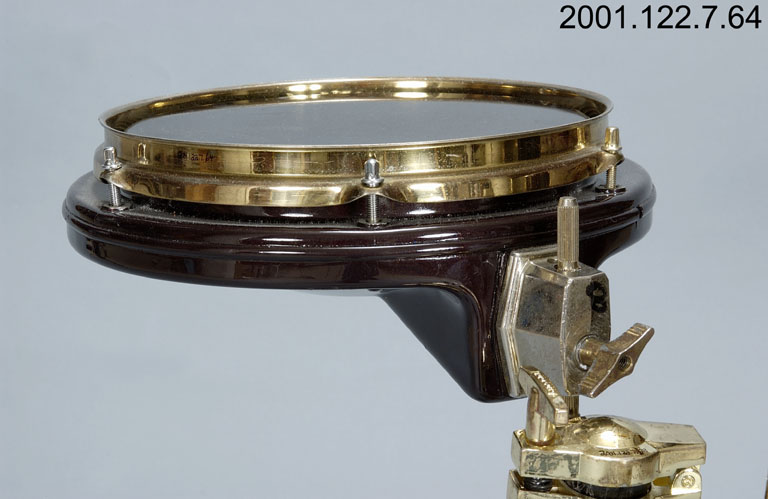

BB ddrum pads

122.7.51
122.7.58
1122.7.64
CC and GG Shark pedals Not included in collection
DD SID electronic trigger Not included in collection
EE Yamaha double bass drum pedal Not included in collection
FF Dauz pad (keyboard trigger) Not included in collection
HH Camco bass drum pedal Not included in collection

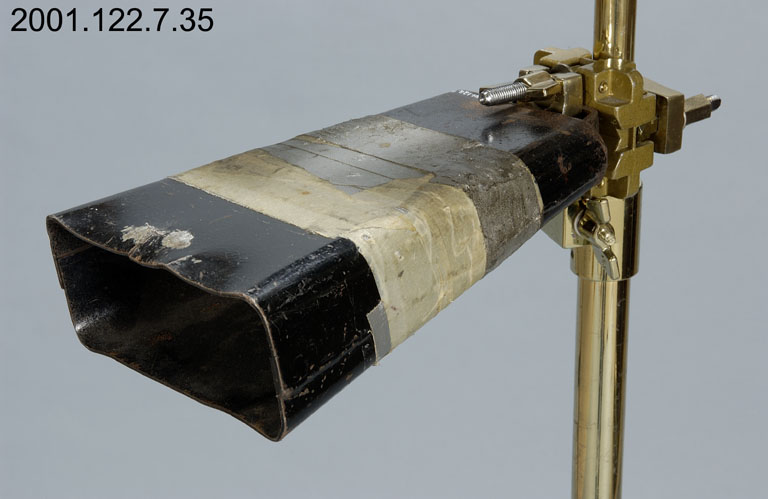

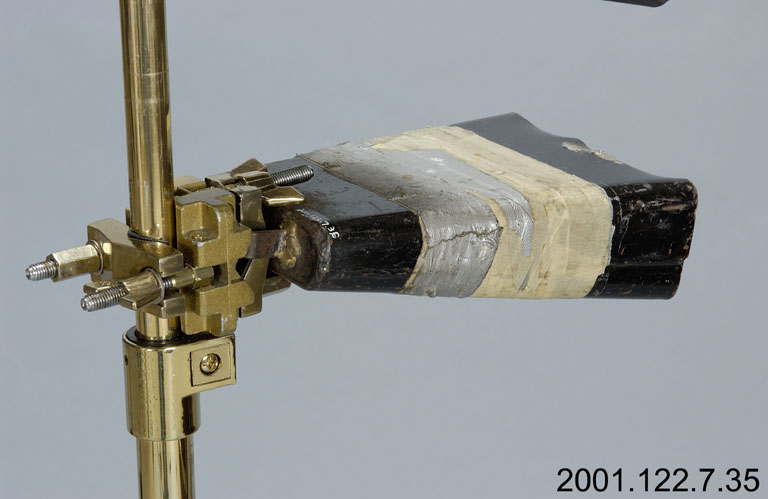

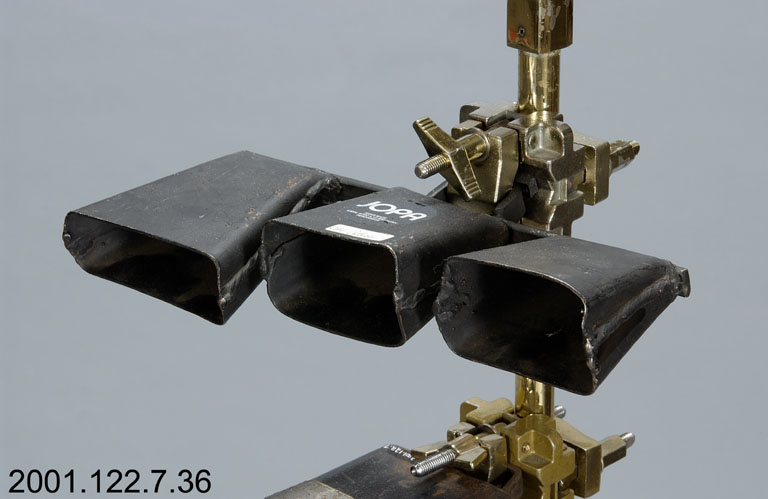

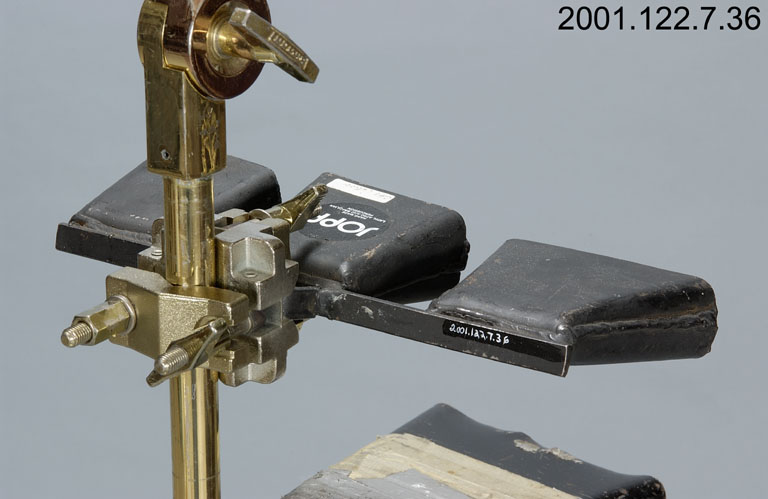

G Cowbells (Note that Peart usually uses five cowbells; the single "small" cowbell appears to be missing from this collection.)

122.7.36
122.7.35

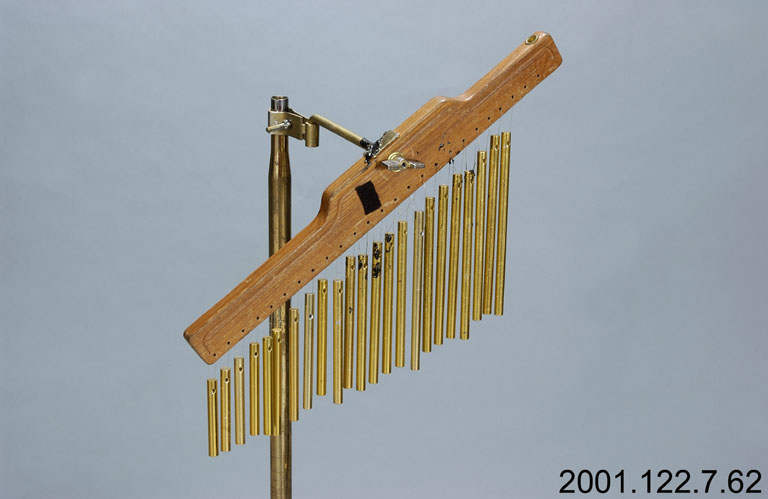

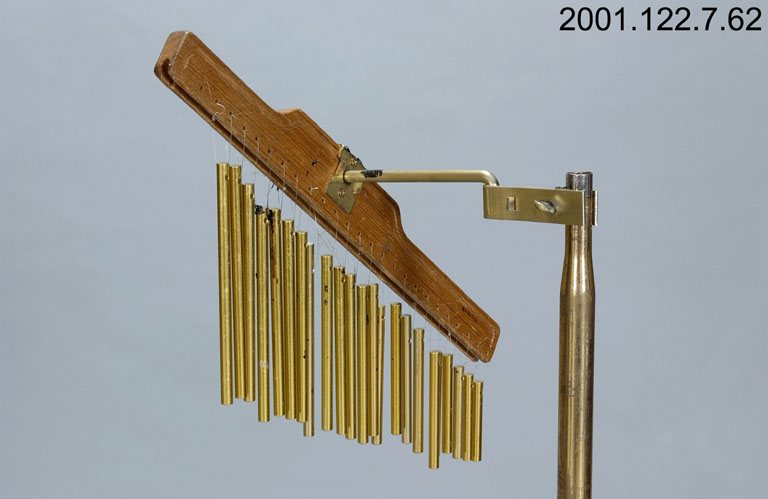

MM and Q Wind chimes

122.7.62

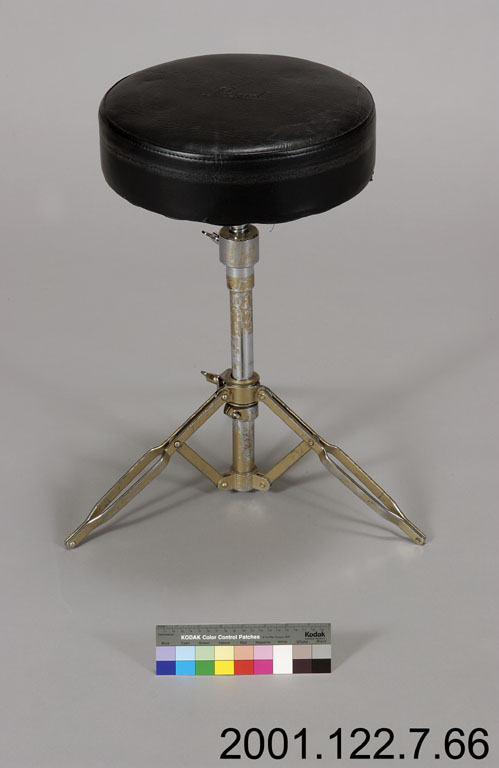

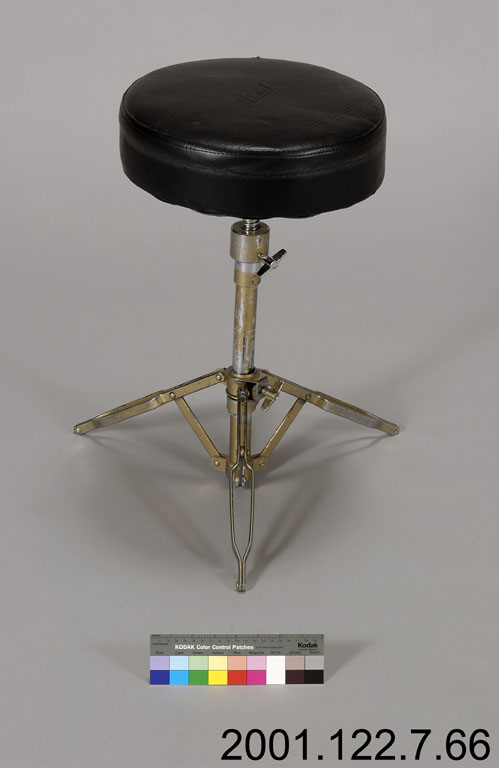

Not shown Drum throne

122.7.66

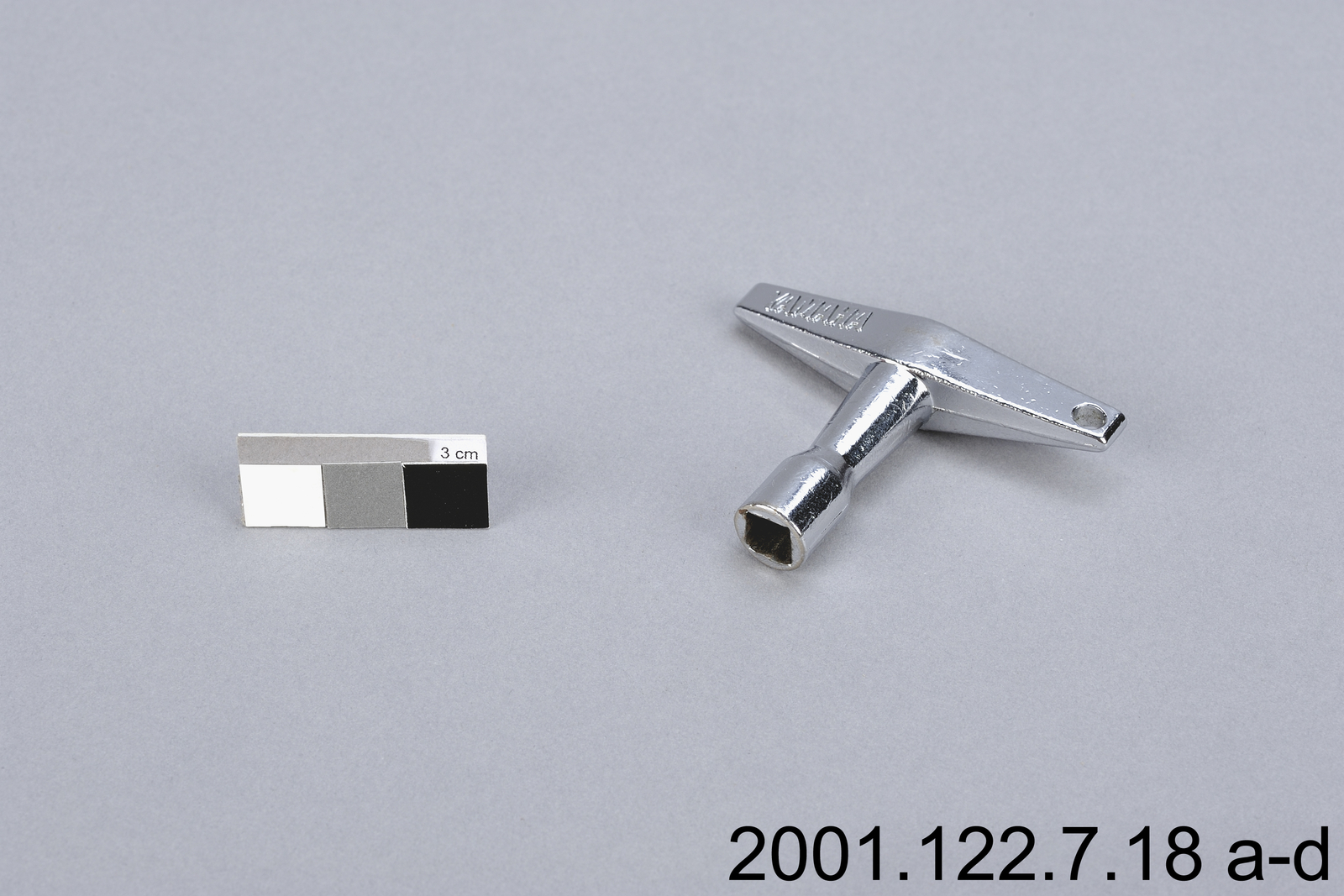

  Drum key

1.22.7.18 a-d

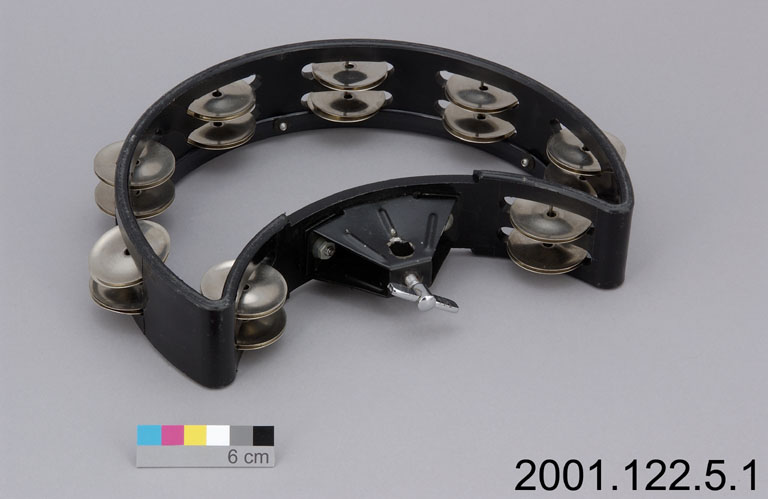

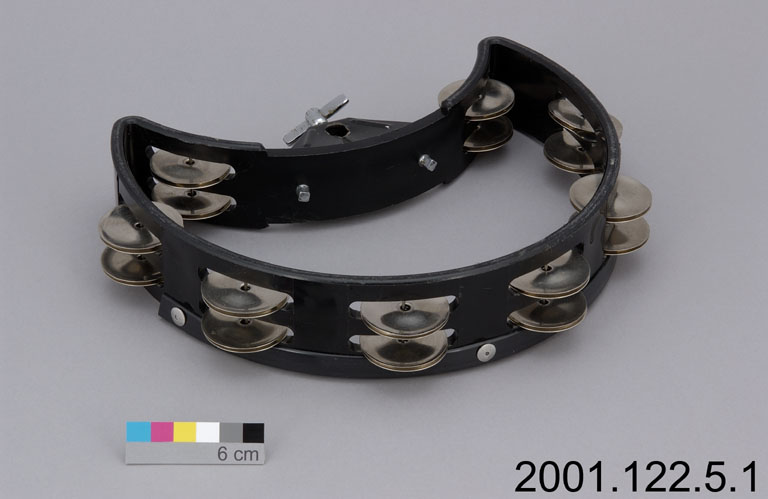

Not shown Tambourine (only used for "Cold Fire")

122.5.1

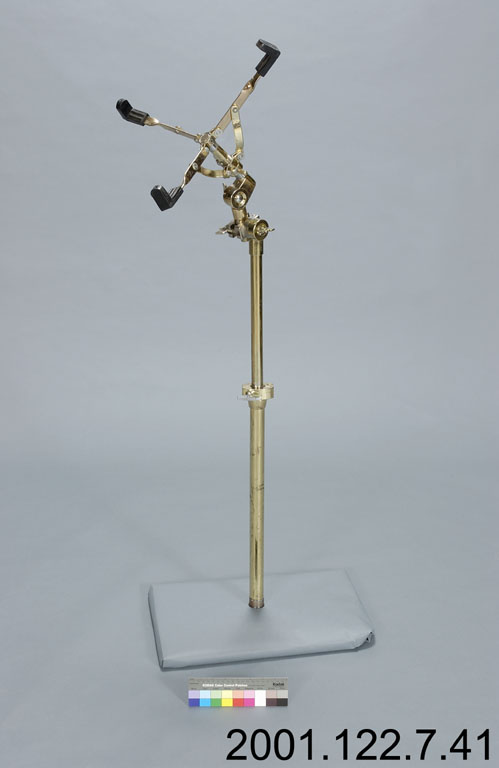

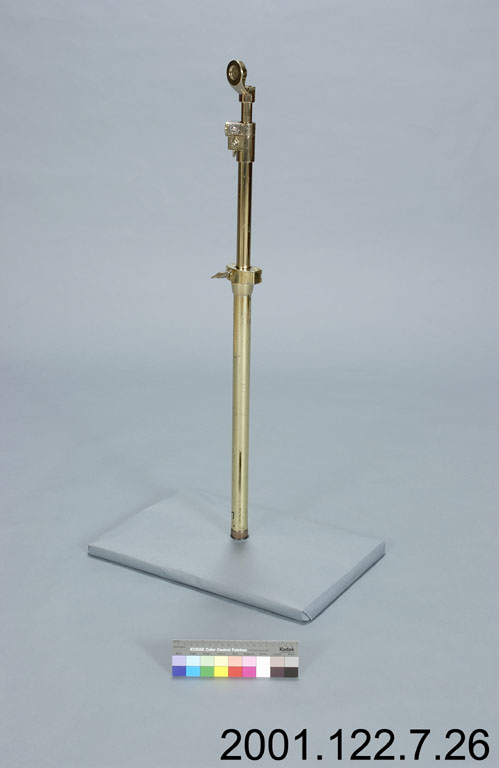

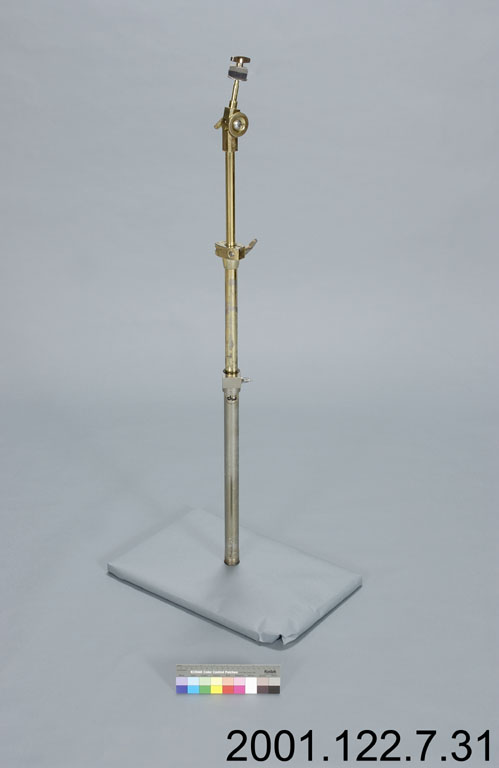

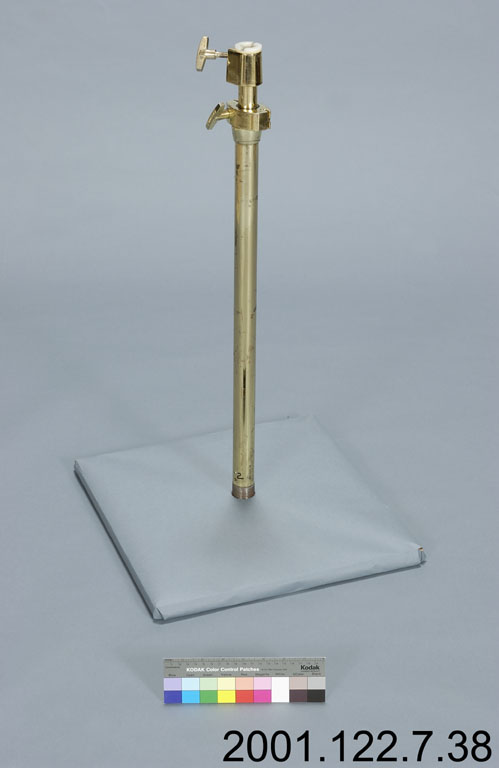

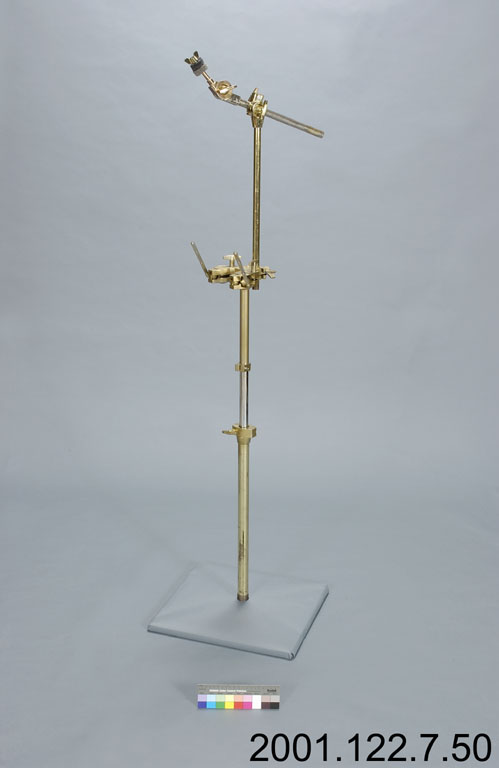

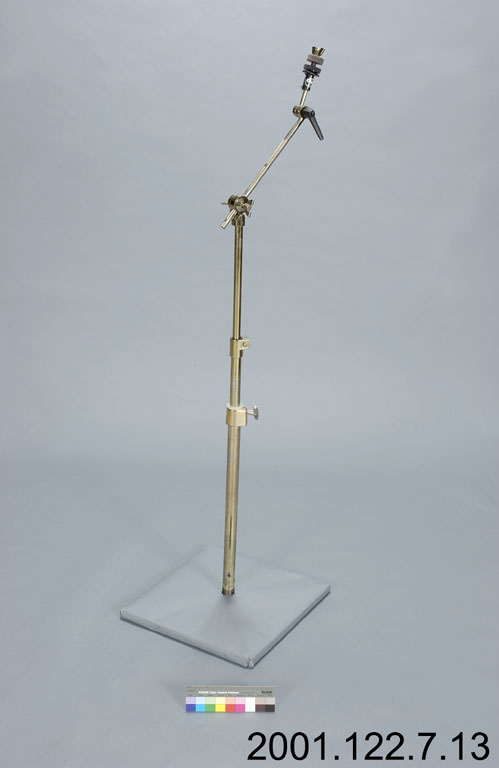

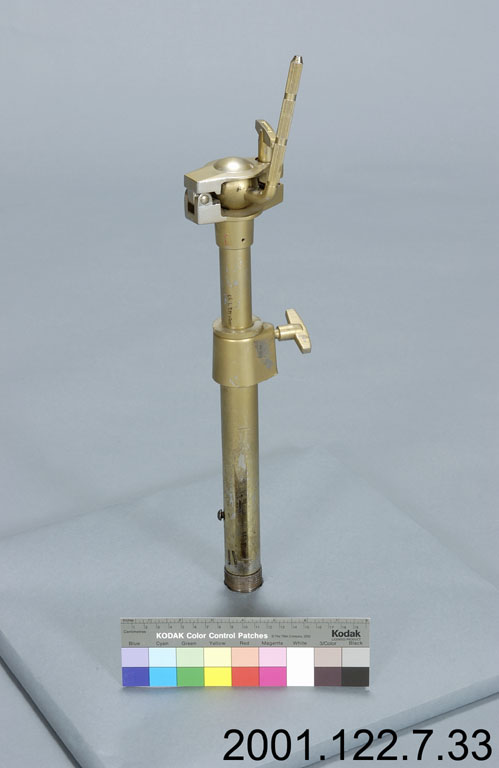

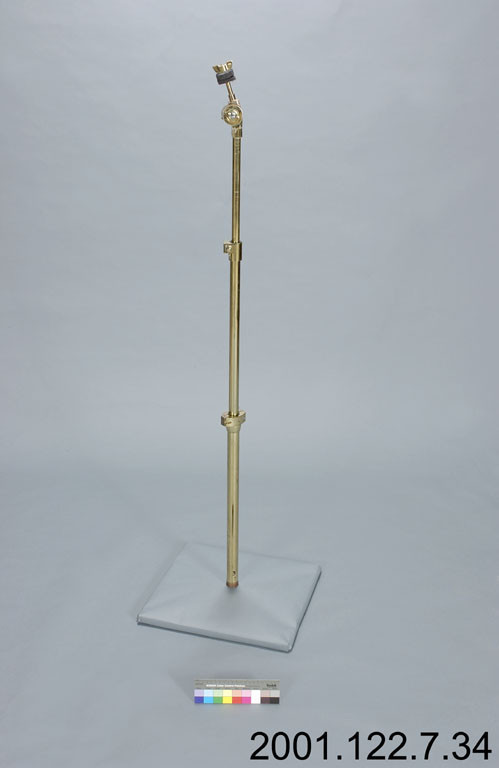

Stands

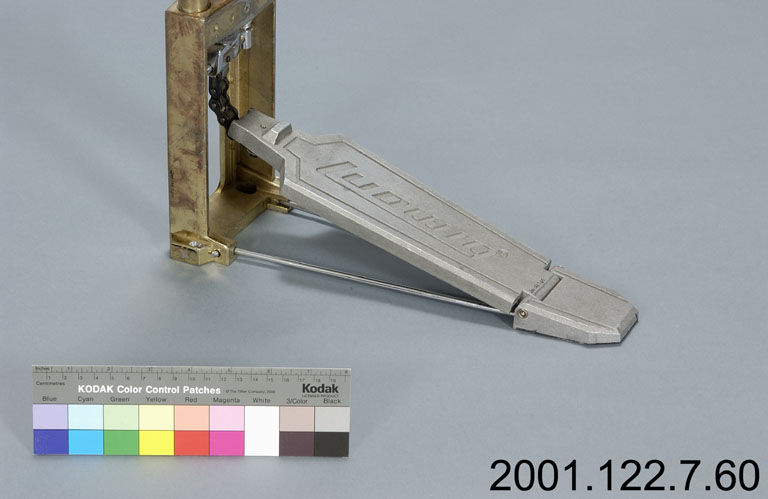

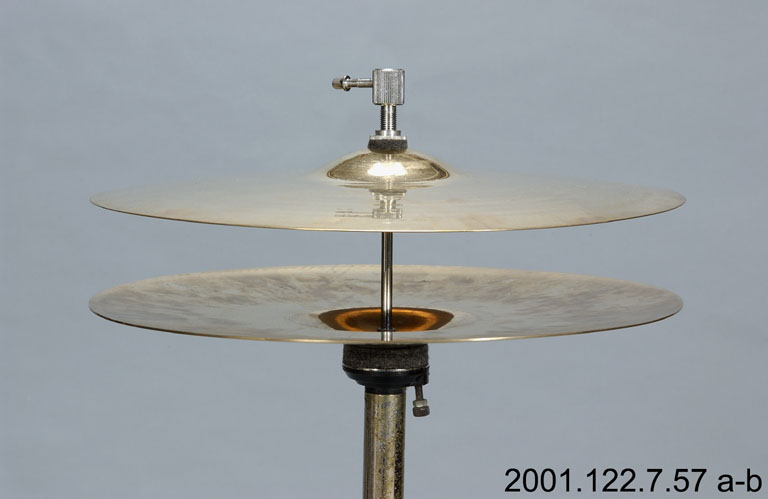

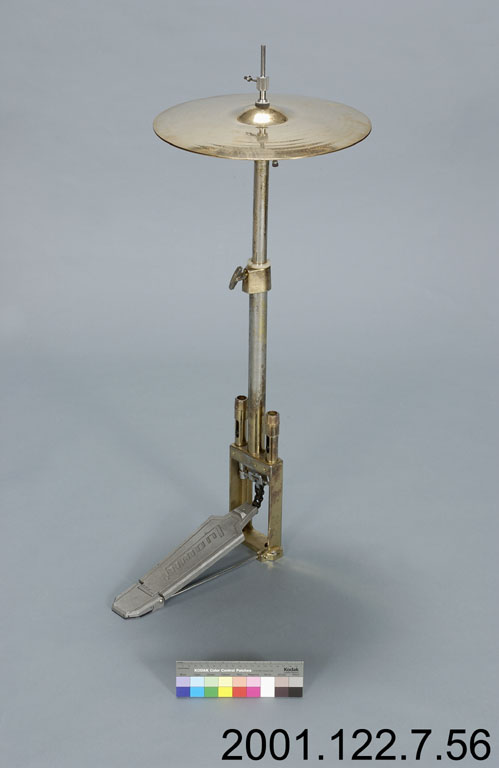

  • Hi-hat, stand, and fan unit used on front kit
  • Hi-hat, stand, and fan unit used on front kit
  • Hi-hat, stand, and fan unit used on back kit
  • Hi-hat, stand, and fan unit used on back kit

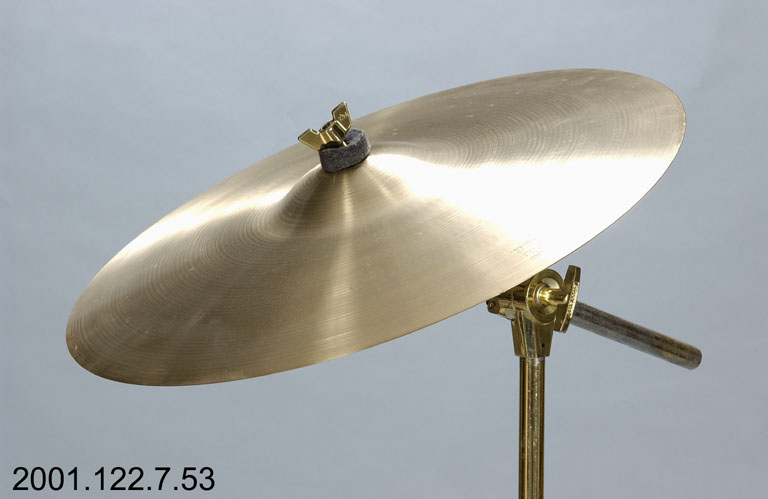

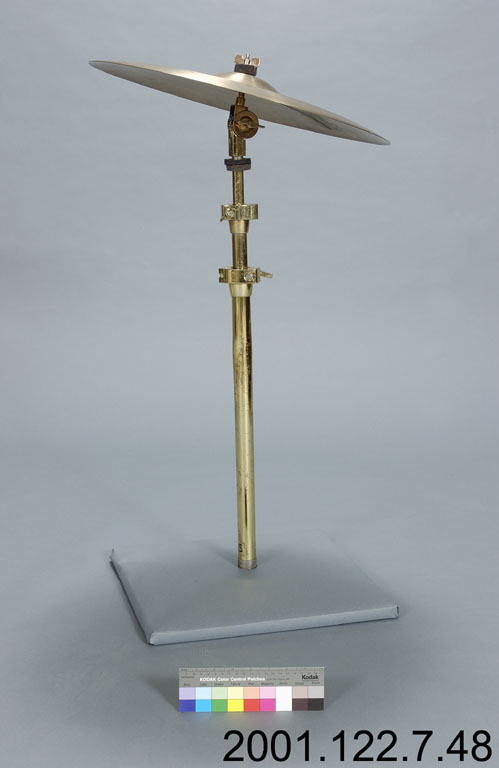

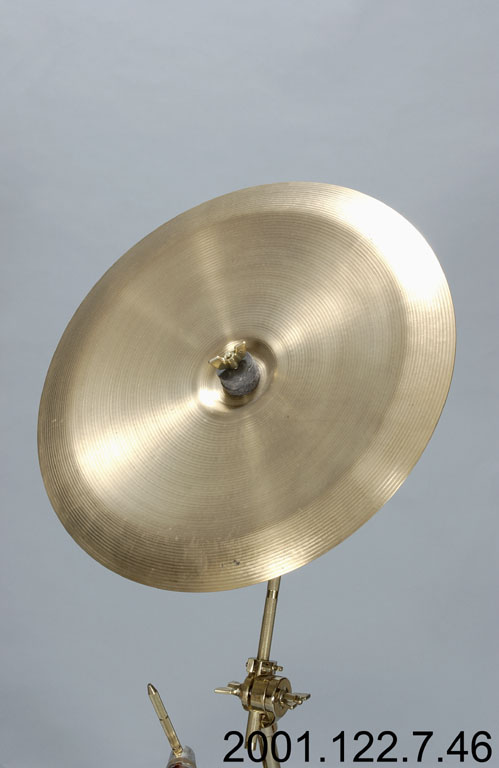

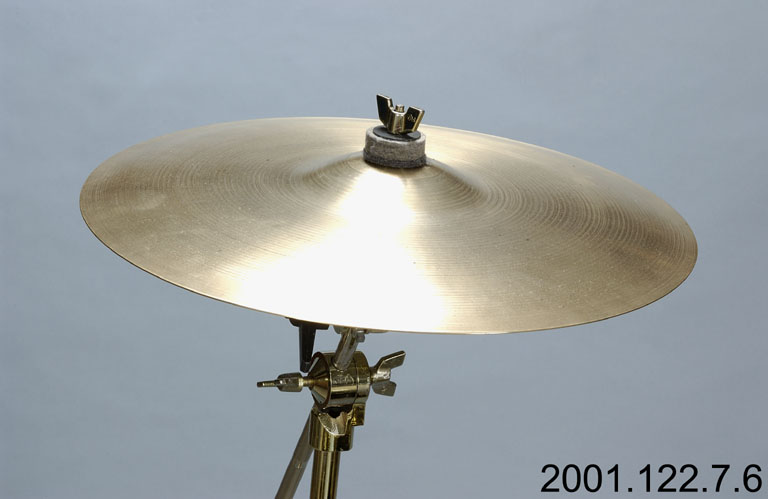

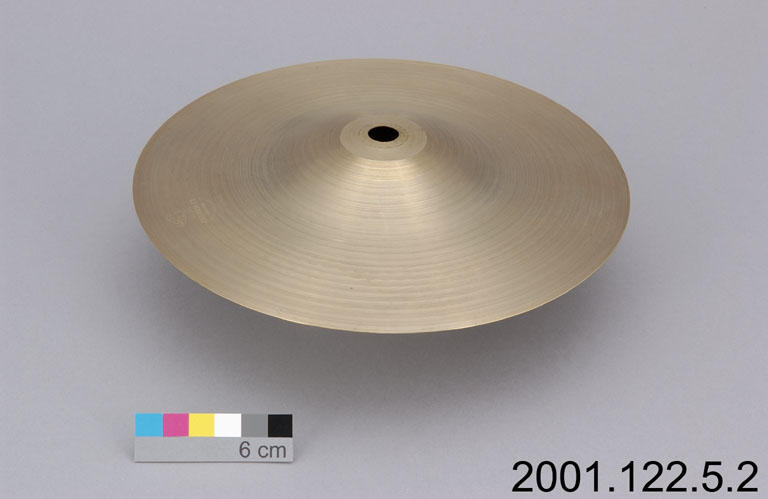

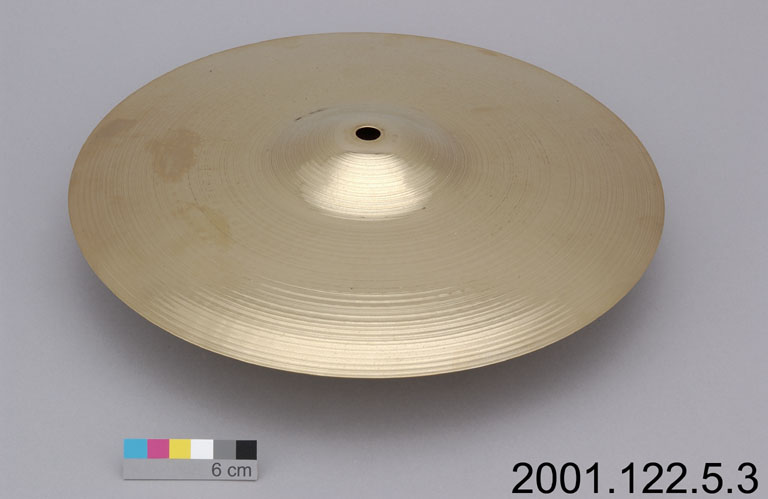

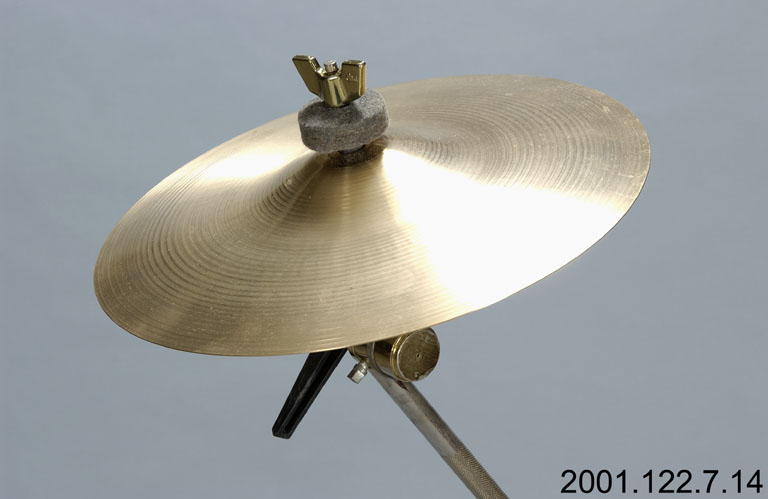

Cymbals



Photo Gallery

  • Portrait from Counterparts tour book
  • Filming "Stick It Out"
  • Taking a break: "Stick It Out" video
